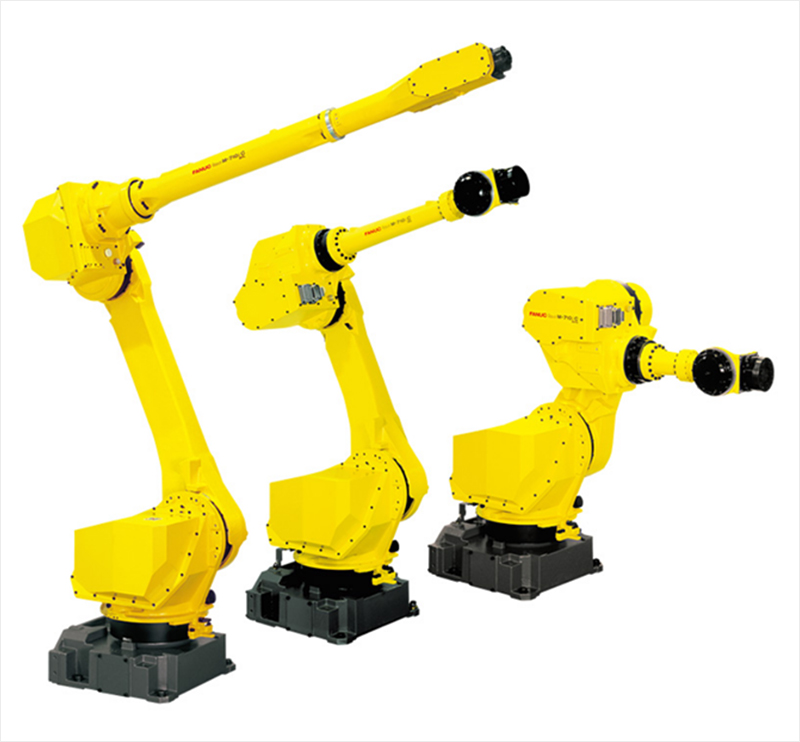

FANUC Robot M-710iC
| M-710iC | /45M | /50 | /70 | /12L | /20L | /20M | /50S | /50H | |
| Controlled axes | 6 | 5 | |||||||
| Max. payload at wrist | 45kg | 50kg | 70kg | 12kg | 20kg | 20kg | 50kg | 50kg | |
| Motion range (X, Y) | 2606mm, 4575mm | 2050mm, 3545mm | 3123mm, 5609mm | 3110mm, 5583mm | 2582mm, 4609mm | 1359mm, 2043mm | 2003mm, 3451mm | ||
| Repeatability | ±0.06mm | ±0.03mm | ±0.04mm | ±0.09mm | ±0.06mm | ±0.06mm | ±0.04mm | ±0.15mm | |
| Mass | 570kg | 560kg | 540kg | 530kg | 545kg | 540kg | |||
| Installation | Floor, Upside-down, Angle | Floor, Upside-down | |||||||
| Matching controller / Input power capacity | R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) / 12kVA | R-30iB/R-30iB Plus (A-, B-cabinet) / 12kVA | |||||||
| Application | x | x | x | x | x | x | x | x | |
| x | x | x | x | x | x | x | - | ||
| x | x | x | x | x | x | x | - | ||
| x | x | x | x | x | x | x | - | ||
| x | x | x | - | - | - | x | - | ||
| Mold handling, Deburring, Laser cutting | - | ||||||||
品牌 FANUC （发那科）
品名 发那科机器人
型号 FANUC ROBOT M-710iC
品名 发那科机器人
型号 FANUC ROBOT M-710iC
